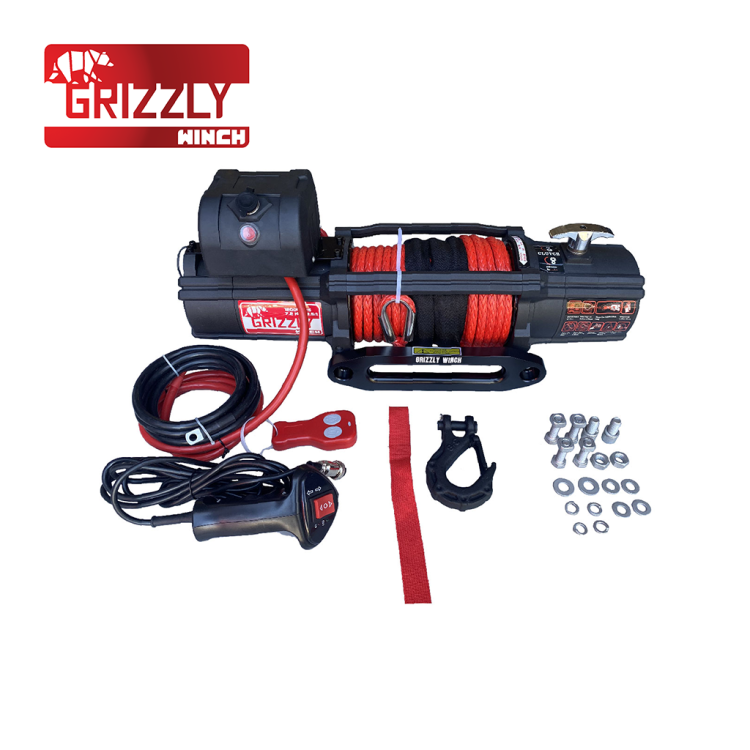

Grizzly Winch 12000 lbs
Gear ration 72.5:1 - Synthetic rope
Description
| Grizzly Winch 12000lbs | Technical specifications | ||
| Pull capacity(single line) | 12000lbs / 5454 kgs | ||
| Motor 12V | 7.2 HP / 5.4 Kw | ||
| Controls | Wired / wireless remote control | ||
| Gear | 3-stage planetary | ||
| Gear ratio | 72.5:1 | ||
| Brake | Automatic | ||
| Rope | 9.5m x Ø 24 mm | ||
| Fairlead | Aluminiu fairlead | ||
| Net weight | 30 kg | ||
| Mounting bolt pattern | 254mm x 114,3mm | ||
| Dimensions | (L x W x H) 623mm × 174mm × 222mm | ||
