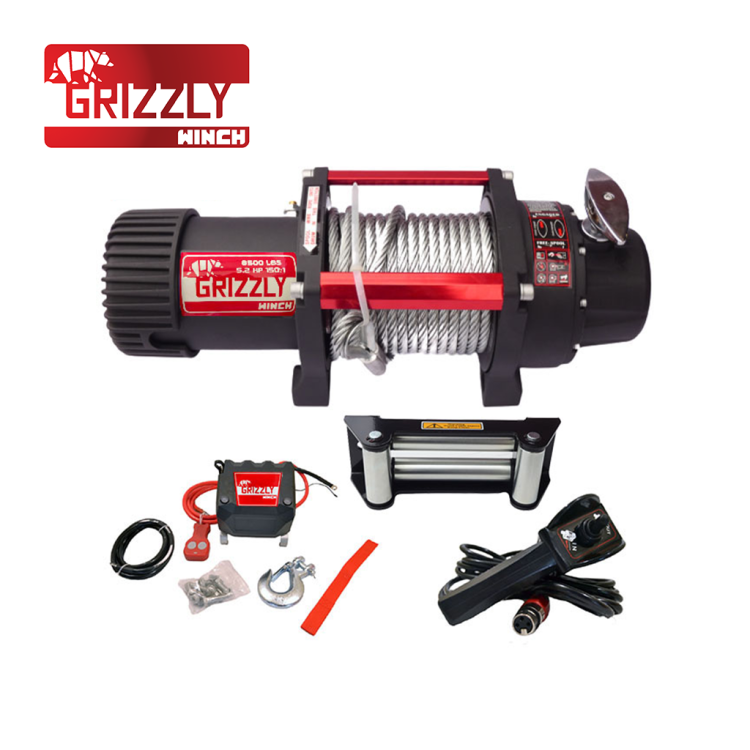

Grizzly Winch 8500 lbs – Gear ration 150:1 – Wire rope
Grizzly Winch 8500 lbs
Gear ration 150:1 - Wire rope
Description
| Grizzly Winch 8500lbs | Technical specifications | ||
| Pull capacity(single line) | 8500lbs / 3855 kgs | ||
| Motor 12V | 5.2 HP / 3.9 Kw | ||
| Controls | Wired / wireless remote control | ||
| Gear | 3-stage planetary | ||
| Gear ratio | 150:1 | ||
| Brake | Automatic | ||
| Rope | 18m x Ø 8 mm | ||
| Fairlead | 4-ways rollers fairlead | ||
| Net weight | 29 kg | ||
| Mounting bolt pattern | 165mm x 114,3mm | ||
| Dimensions | (L x W x H) 435mm × 162mm × 185mm | ||
