Grizzly Winch 13000 lbs – Gear ration 150:1 – Wire rope

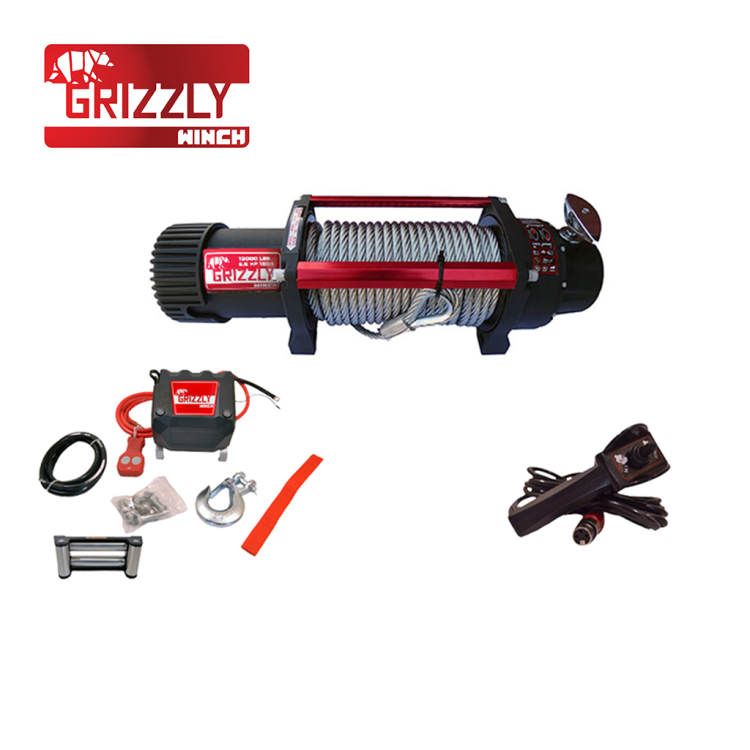

Grizzly Winch 13000 lbs
Gear ration 150:1 - Wire rope
Description
| Grizzly Winch 13000lbs | Technical specifications | ||
| Pull capacity(single line) | 13000lbs / 5897 kgs | ||
| Motor 12V | 6.5 HP / 4.8 Kw | ||
| Controls | Wired / wireless remote control | ||
| Gear | 3-stage planetary | ||
| Gear ratio | 150:1 | ||
| Brake | Automatic | ||
| Rope | 25m x Ø 10 mm | ||
| Fairlead | 4-ways rollers fairlead | ||
| Net weight | 38 kg | ||
| Mounting bolt pattern | 254mm x 114,3mm | ||
| Dimensions | (L x W x H) 546mm × 160mm × 218mm | ||
